Gearwell Electric Speed Controller, Flipsky V6.7Pro Motor Controller 14-60V with Aluminum Anodized Heatsink, ESC for Mountain Bike

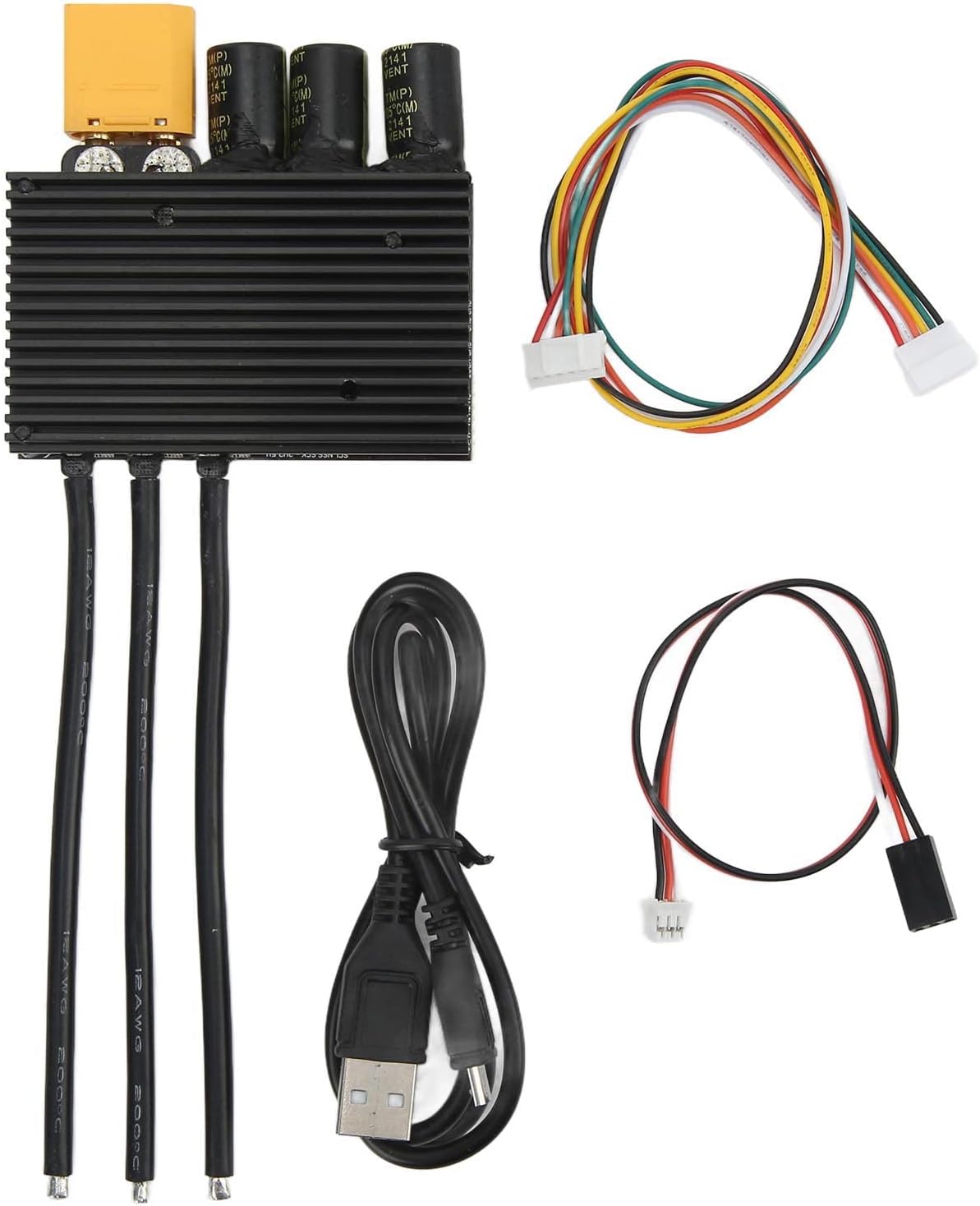

Item Type: Electric Speed Controller Material: PCB, aluminum alloy Input Voltage: 14-60V (safe for 4-12s), the peak voltage should not exceed 60V. Continuous Current: 70A Instantaneous Current: 200A ERPM: 150000 Communication Port: USB, CAN, UART Communication Method: PPM,ADC, NRF, UART, SPI, IIC Compatible sensors: ABI, Hall, AS5047, AS5048a Motor Wire: 12awg Mode: DC, BLDC, FOC Application: Robotic Arm, Robot, Battle Robot, Dy OfLínea 1 x Hall 6PIN Line Port 1 x data cable. 1 x user manual (English language not guaranteed). Anodizing Heat Dissipation – Using the aviation aluminum alloy heat sink, the appearance and size of the heat sink are determined by rigorous scientific calculation results. The thermally conductive silicone is combined with the heat sink to improve the heat dissipation performance of the ESC. The surface of the heat sink is anodized to prevent surface scratchesImmersion gold thickening process: designed with a 6-layer PCB design, and the copper foil thickness of each layer is 30Z. At the same time, the PCB is immersed in gold skylights in key parts to increase the performance of heat dissipation and increase the overcurrent treatment process to improve the overall effectEfficient and safe protection: to prevent the power contacts from being burned and oxidized by electric sparks, effectively protect the electronic components of the IC from the damage of decay and avoid sparks that can cause explosions, a spark switch function has been added to the front of the power supply of the power supplyUpgrade Chips: C37, C39, C40, C41, C43, C44 are switched to 10UF100V high voltage capacitors, which makes the voltage change of the MOS more stable and the efficiency better. Replaced LM3671 chip with MC5219 3.3ym5 two-way output, upgraded from the original output of 33V, 600mA to 500mA x 2(1A), better power supply for peripheralsSupport module: Connect with IMU module through IIC interface, support function for balancing car, support MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 and other unit modules Facebook LinkedIn Pinterest WhatsApp Email Copy Link Categoría: Bicicletas eléctricas de montaña
