GramStudio Bike Electric Motor Conversion Kit 36V 350W Electric Conversion Kit with Brush Motor and Freewheel Suitable for Most Bike Wheels

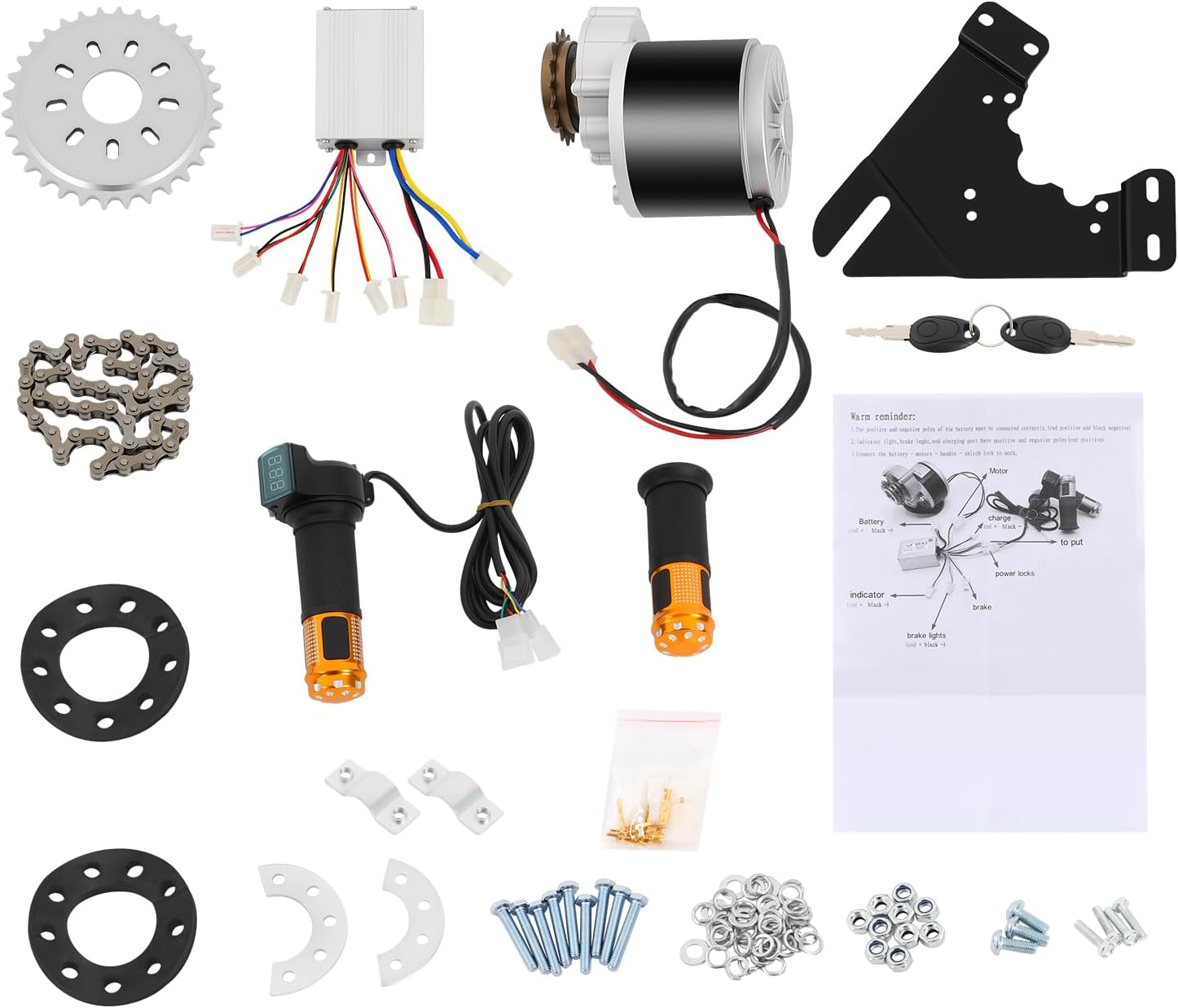

Application It can be used to convert ordinary mountain bikes into electric bikes with stronger performance and better handling. This product is suitable for bicycles, combi, travel vehicles, mountain bikes and small electric tricycles with a hub diameter of less than 1.42 inches. Specification Color: Black and Silver Material: iron, aluminum, copper wire Process: baking paint, anodic oxidation Style:Fashion Assembly Required: Yes Applicable scope: hub diameter Specifications: 350W 36V Motor: Brushed Reducer Motor No-load current: ≤2.0A No-load speed: 3850 rpm Rated Torque: 1.11N-m Rated speed: 3000 rpm Rated current: ≤12.5A Efficiency: ≥78% Gear Ratio: 9.78:1 Toothed Disc Size: Diameter: 134mm/5.27″; Center Hole Diameter: 35mm/1.38″; Teeth Spacing: 12.7mm/0.5″; Hole Size: 6.5 x 12mm/0.25″ x 0.47″ Package size: 26.5 x 24 x 14 cm Gross weight: 4 kg. Net weight: 3.8 kg. Package includes: 1* Brush Motor with Free Wheel 1 x Chain 1* Control Unit 1 x Mounting Plate 2* Rotary Chokes Other Mounting Accessories Notes: 1. Please note that this product does not include bicycles, batteries or chargers. 2. When the 36V battery is fully charged, the voltage is about 39-40V. With too low a load, the voltage is about 30-32 V. When the voltage drops to 30V, the control unit automatically turns off the current to protect the battery. If the voltmeter indicator on the accelerator pedal falls below 34V during driving, it means that the battery voltage is too low and must be charged in time. Item Weight : 3.8 kg Date First Available : 12 April 2024 Manufacturer : GramStudio ASIN : B0D1KDMXHQ Item model number : HG-YU023 Department : Unisex Best Sellers Rank: 258,309 in Sports & Outdoors (See Top 100 in Sports & Outdoors) 1,226 in Electric Bikes Customer reviews: 2.9 2.9 out of 5 stars 8 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) 1); } }); }); Bicycle motor for bicycle, combi, travel vehicles, mountain bikes, small electric tricycles, which uses the diameter of the hub less than 36mm.EXTREMELY PRACTICAL This kit can turn ordinary mountain bikes into electric bikes with stronger performance and better handling, which is very convenient.High Safety The controller has low voltage protection (30V), overload protection (current limit:20A) and loss of control protection (must connect the brake lever with shutdown function(not included) to the controller), which makes the kit safer and more reliable to useThe motor uses freewheel, so when you rotate the wheel, the motor will not rotate, just like a normal bike, this can reduce the resistance.COMPLETE ACCESSORIES – This kit includes a motor, a mounting plate, a controller, a chain, a toothed disc and other accessories so that you can turn a regular mountain bike into an electric bike without buying other accessories. Facebook LinkedIn Pinterest WhatsApp Email Copy Link Categoría: Bicicletas eléctricas de montaña
