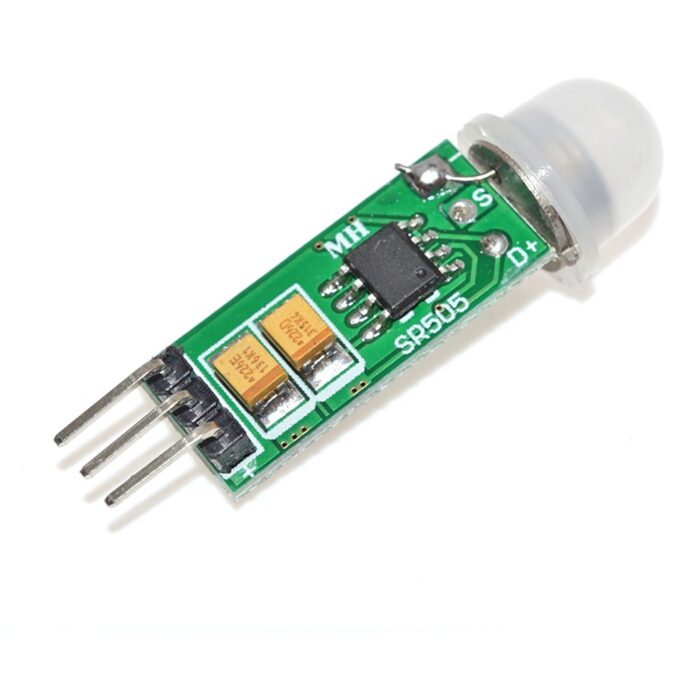

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products. Features Automatic Control Minimum size Repeatable Trigger Wide range of operating voltage Low-power Output high signal Applications Body induction lamps Body induction toys Security Products Industrial automation and control Auto-sensing of electrical equipment Battery-powered automatic control Specification Operating voltage range: DC4.5-20V Quiescent Current: <60uA Level output: Gao 3.3V / Low 0V Trigger: reusable trigger (default) Delay Time: The default 8S -30% Board Dimensions: 10 * 23mm Induction angle: <100 degrees cone angle Sensing distance: 3 meters Working temperature: -20 to 80 degrees Sensor Lens Dimensions: Diameter: 10mm Package Includes : 1 x HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module.
