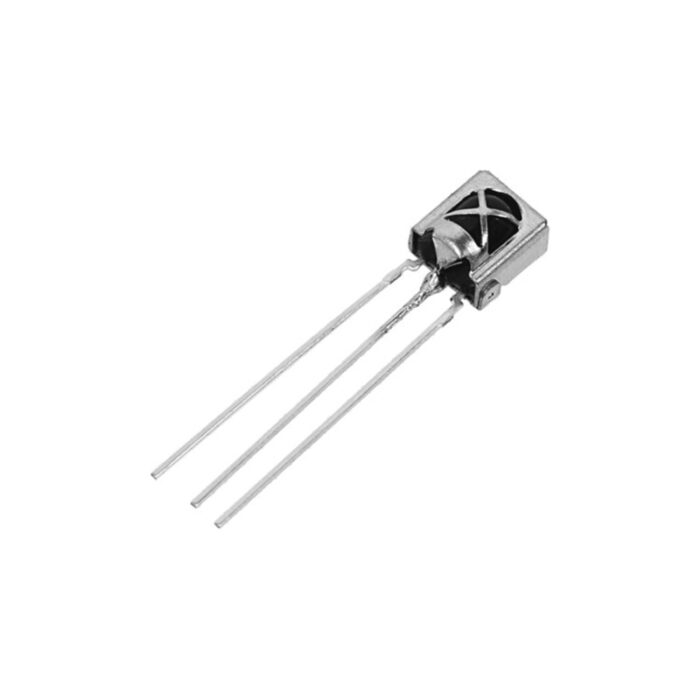

TSOP1838 IR Receiver sensor has 3 pins GND, Vcc and Signal. GND is connected to the ground and Vcc is connected to the positive terminal of the power supply. A 5V DC power supply is used to power up this sensor and it consumes 5mA while operating. Signal pin is an output and sequence generated according to the detected IR signal can be yielded from this pin. This sequence is served to the microcontroller for analysis and its recreation. Features: 1.Photo detector and preamplifier in one package 2.Internal filter for PCM frequency 3.High immunity again 4.2.7 to 5.5 Volt supply voltage; low power consumption 5.TTL and CMOS compatibility 6. 3.0V or 5.0V supply voltage; low power consumption. 7.TTL and CMOS compatibility. 8.Suitable transmission code:NEC code,RC5 code. 9.Universal receiver. 38 KHz 10.Infrared receiver. 11. Infrared remote control receiver. Application: It can be used for TVs, VTRs,audio equipment air conditioners, car stereo,toys,home computers,Optical switch,Light detecting portion of a remote control and all other equipment requiring remote Package Includes : 1 x TSOP1838 IR Receiver.
