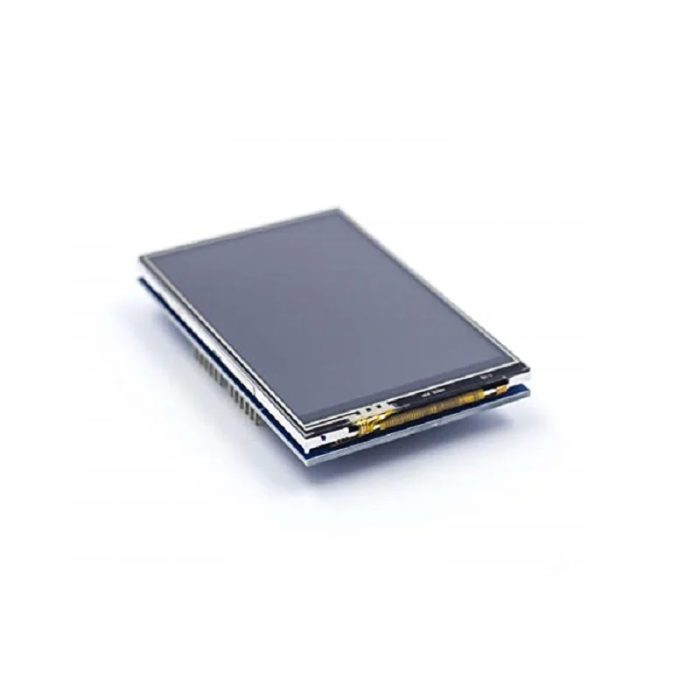

3.5″ inch ILI9486 TFT Shield LCD Module 480×320 for Arduino

3.5 inch TFT 480×320 Ultra HD LCD Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.  This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller. Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring 480X320 resolution, clear display Support 16-bit RGB 65K color display, display rich colors 8-bit parallel bus, faster than serial SPI refresh On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage Easy to expand the experiment with SD card slot Provides an Arduino library with a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support Product Parameters Name Parameter Display Color RGB 65K color Screen Size 3.5(inch) Type TFT Driver IC ILI9486 Resolution 480*320 (Pixel) Module Interface 8-bit parallel interface Active Area 73.44*48.96(mm) Module PCB Size 85.49*55.63(mm) Operating Temperature -20℃~70℃ Storage Temperature -40℃~70℃ Operating Voltage 5V/3.3V   Interface Definition Number Pin Label Pin Description 1 LCD_RST LCD bus reset signal, low level reset 2 LCD_CS LCD bus chip select signal, low level enable 3 LCD_RS LCD bus command / data selection signal,low level: command, high level: data 4 LCD_WR LCD bus write signal 5 LCD_RD LCD bus read signal 6 GND Power ground 7 5V 5V power input 8 3V3 3.3V power input, this pin can be disconnected 9 LCD_D0 LCD 8-bit data Bit0 10 LCD_D1 LCD 8-bit data Bit1 11 LCD_D2 LCD 8-bit data Bit2 12 LCD_D3 LCD 8-bit data Bit3 13 LCD_D4 LCD 8-bit data Bit4 14 LCD_D5 LCD 8-bit data Bit5 15 LCD_D6 LCD 8-bit data Bit6 16 LCD_D7 LCD 8-bit data Bit7 17 SD_SS SD card SPI bus chip select signal, low level enable 18 SD_DI SD card SPI bus MOSI signal 19 SD_DO SD card SPI bus MISO signal 20 SD_SCK SD card SPI bus clock signal   Package Includes : 1 x 3.5″ inch ILI9486 TFT Shield LCD Module 480×320 for Arduino User Manual and Datasheets: Refer Link to Drivers and Documents
